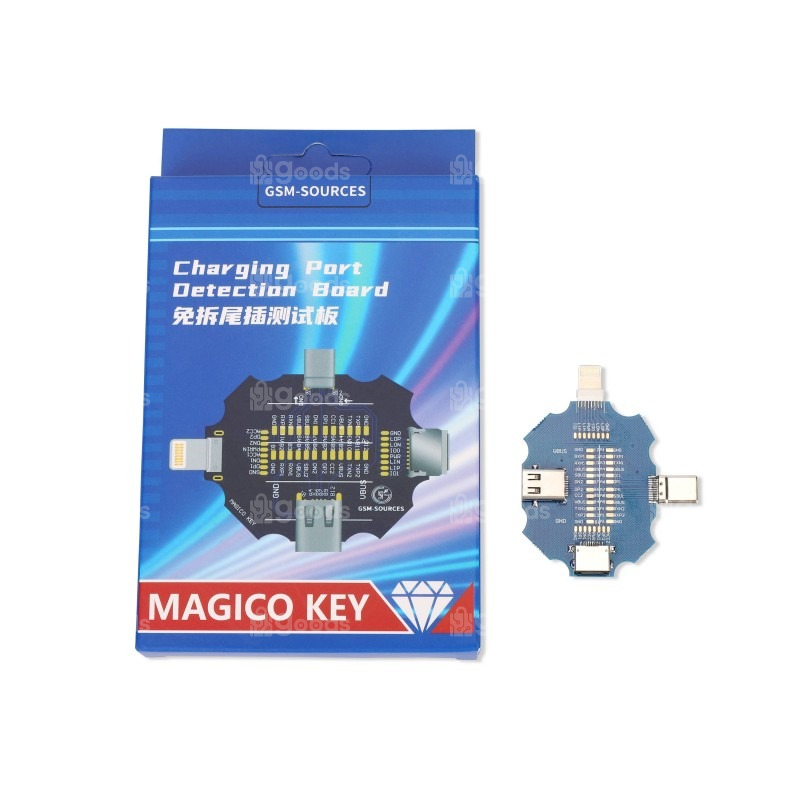

MAGICO KEY Charging Port Detection Board

GSM-SOURCES MAGICO KEY

Charging Port Detection Board

Functions:

1.Support all models of iPhone and Android

2.Testing tail plug cable and charging circuit without disassemble

3.Testing the resistance value about the tail plug cable and charging circuit

4.Testing the charging current and voltage

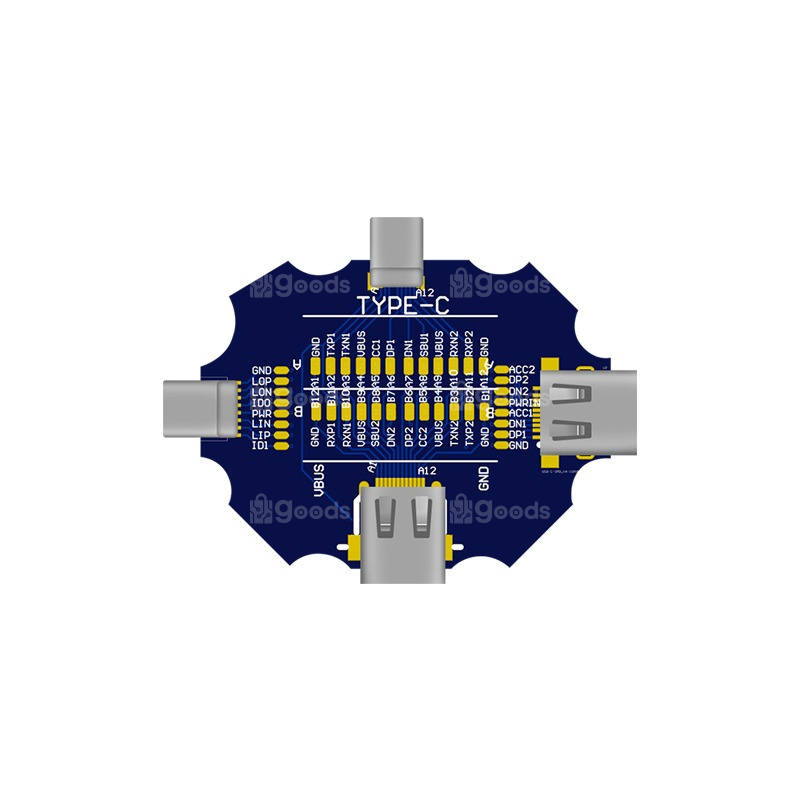

5.The key test points of the charging circuit have been marked, so it is not necessary to look for them slowly on the motherboard.

6.The design of communication between Male plug and female connector is providing the real-time feedback.
